Orb

Beta

Local, self-hosted Pit Wall Strategy, Stint and Team Management

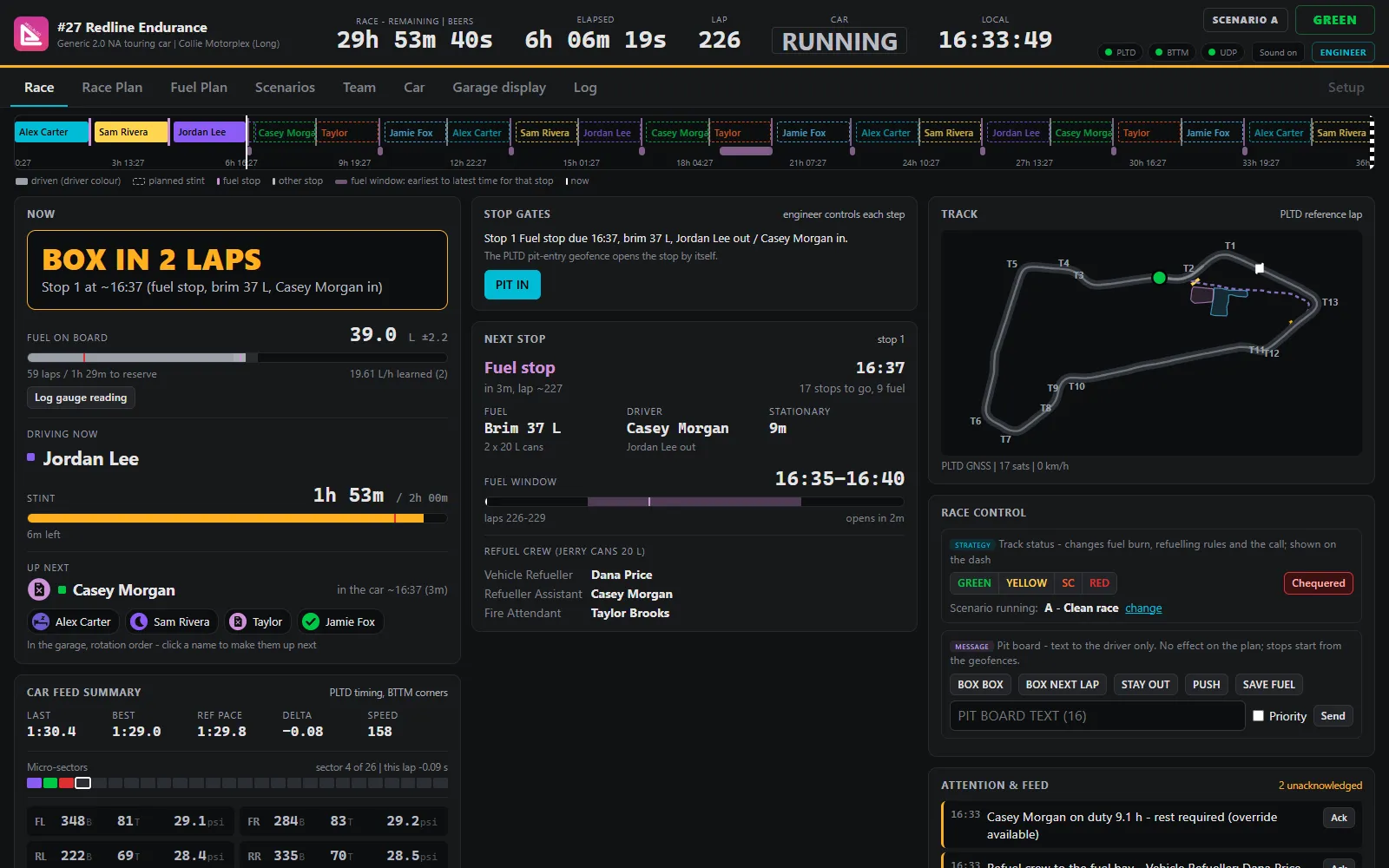

Race tab during a 36 hour race, showing the pit call, fuel on board, the current stint, the next stop and the live track map

Orb runs a small server on one laptop, and any phone, tablet or TV on the same Wi-Fi sees the same live screens. Every second it recomputes the pit call, learns the real fuel burn and keeps the race plan legal against the series rules, while tracking driver rotation and rest. It needs no internet, cloud account or subscription.

Provided as is, without warranty.

Type: Software
Status: Beta
Repository licence: GPL-3.0
Updated: 16 October 2026

Documentation
GitHub repository

Specifications

Orb specifications
Runs on	Windows 10/11 laptop; macOS and Linux from a terminal
Requires	Node.js 18 or newer
Viewers	Any browser on the same Wi-Fi, view-only
Internet	Not required
Device inputs	Agile lap timer, Sentinel with Iris sensors, JSON over UDP
Data	Plain files with an append-only race log, export and replay
Version	2.2.8

Gallery

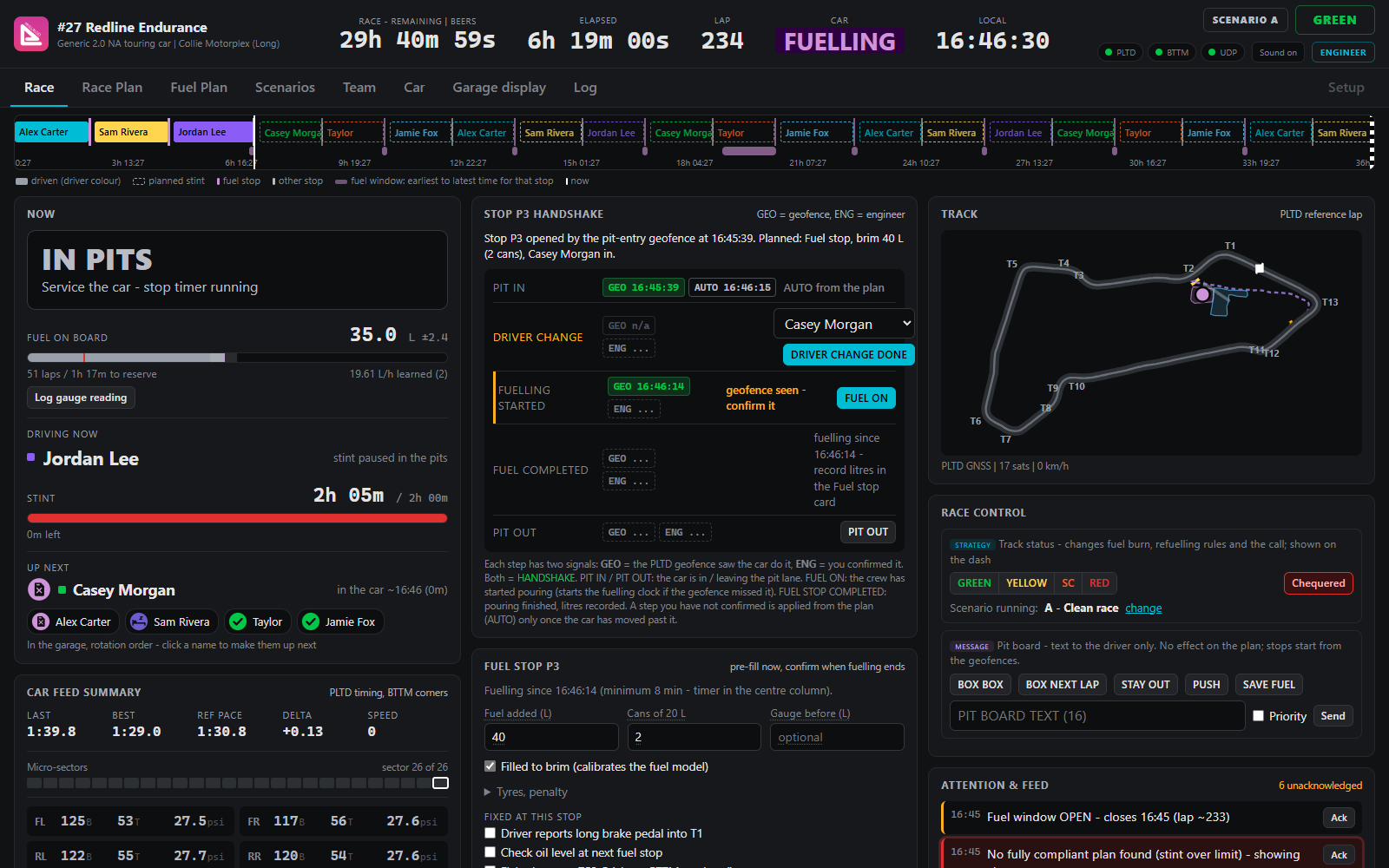

Pit mode with the stop handshake, pit lane timers and the stop log — Pit mode. Every step of the stop is confirmed by the GPS geofence and the engineer.

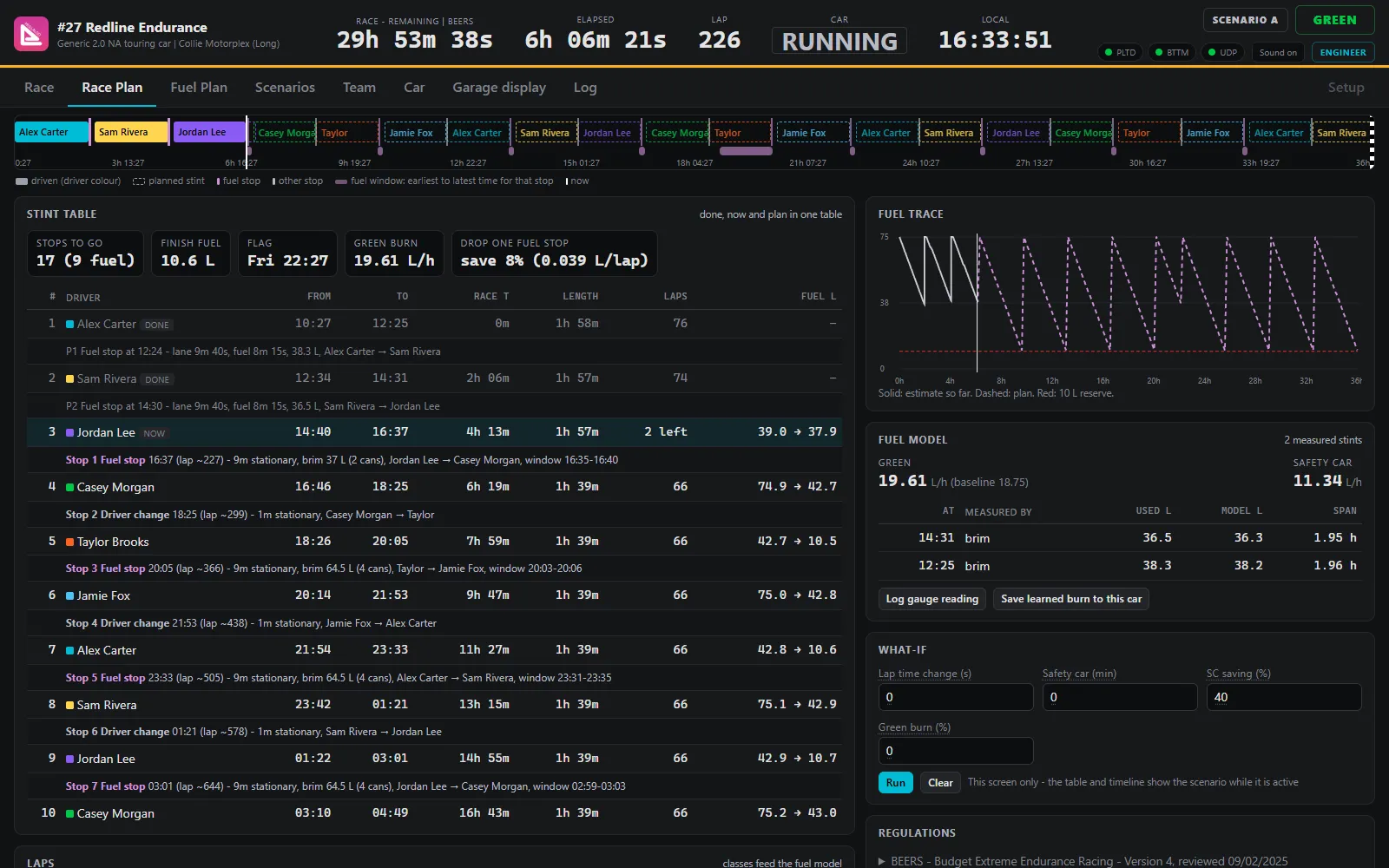

Race Plan tab with the stint table, fuel trace, fuel model and what-if box — The whole race plan in one stint table.

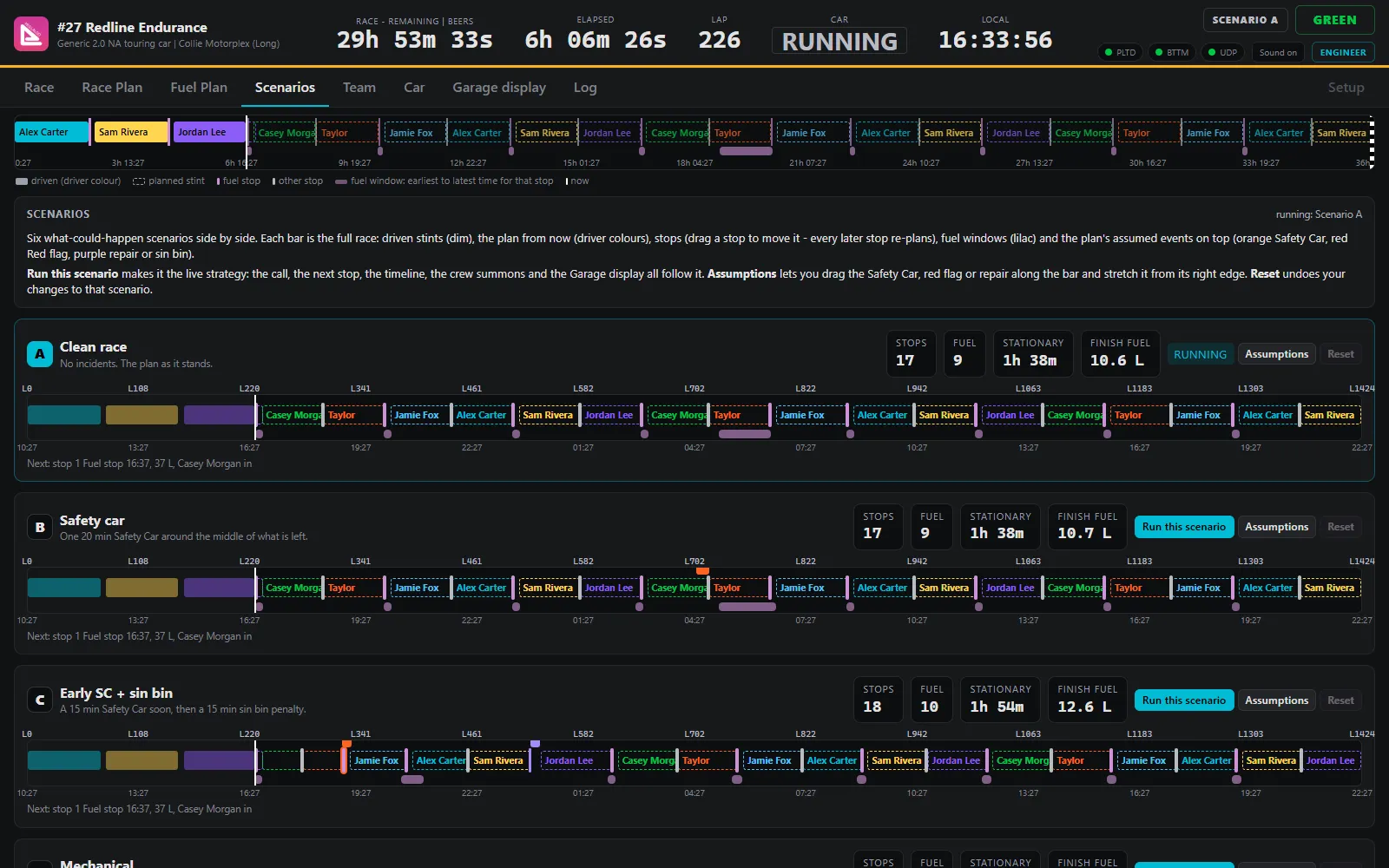

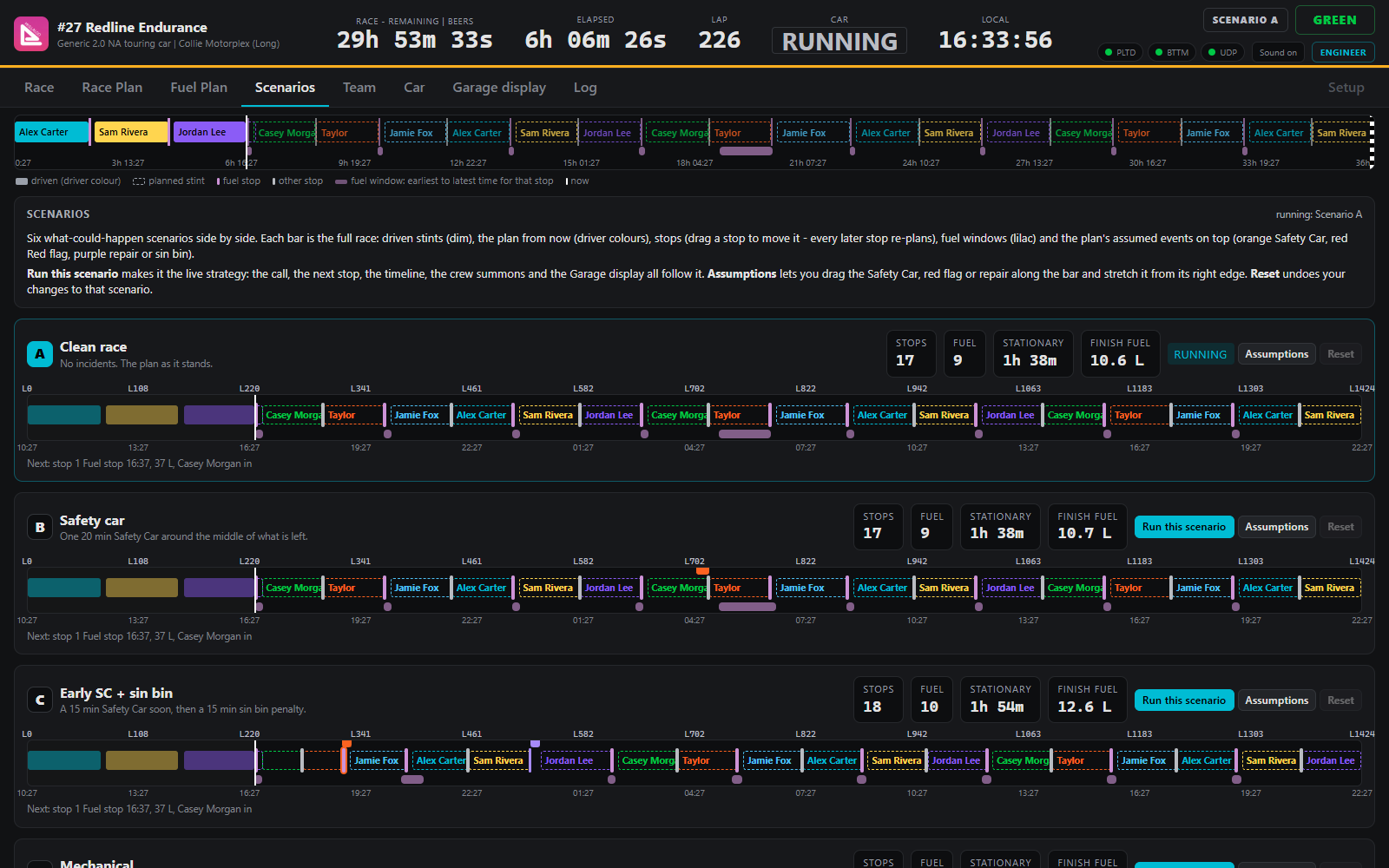

Scenarios tab with six what-if versions of the rest of the race side by side — Six scenarios that re-plan live as you drag a stop or a Safety Car.

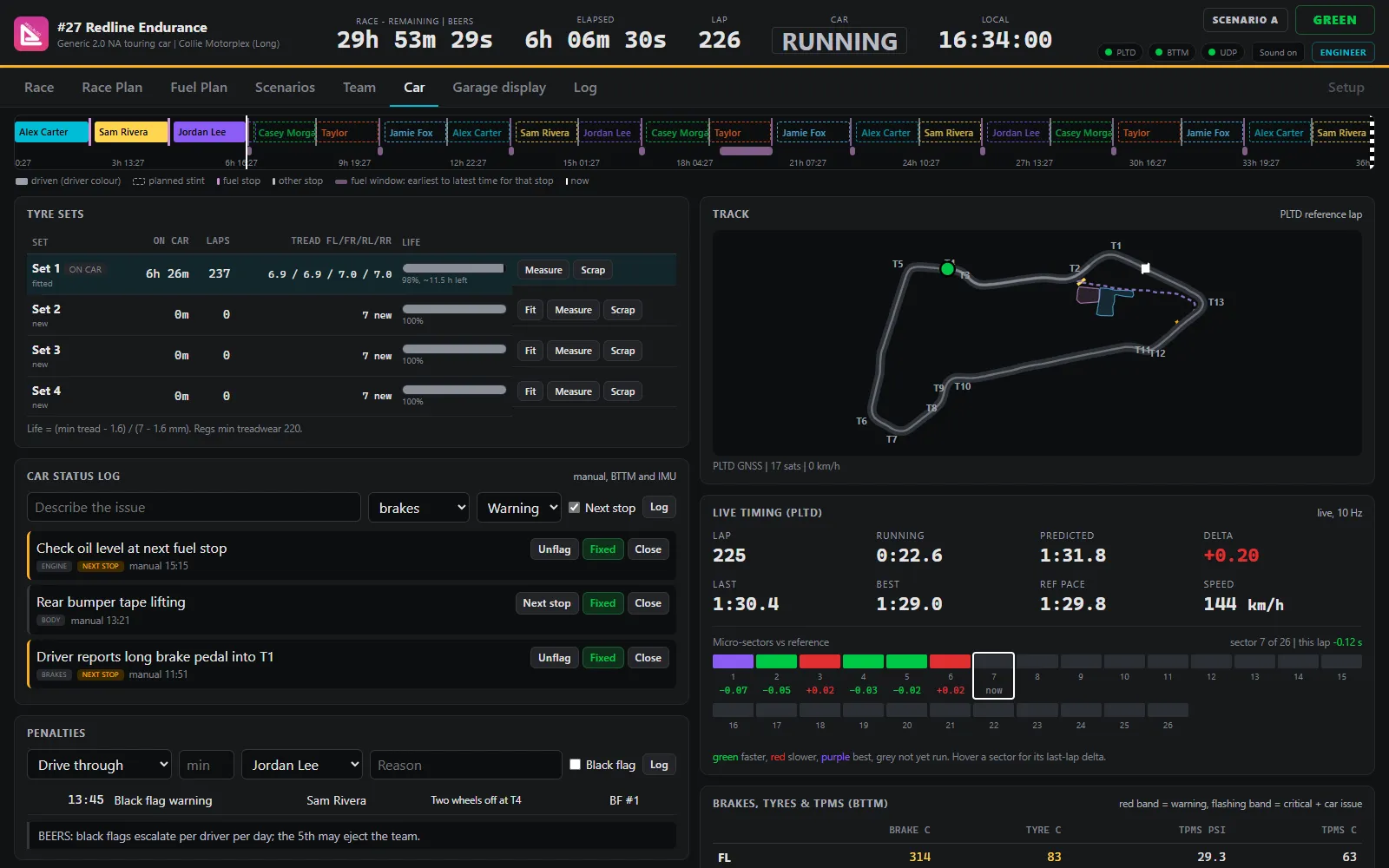

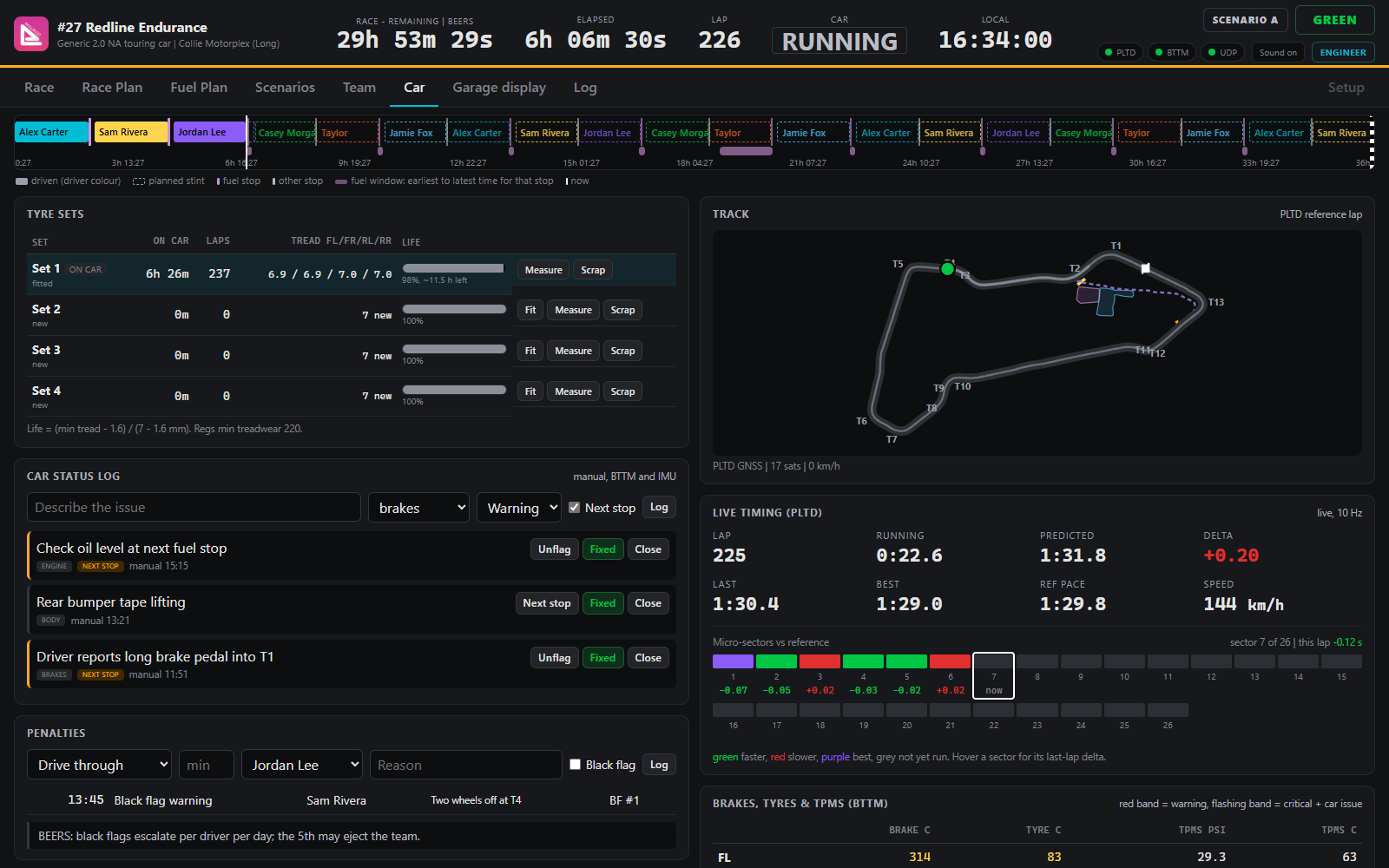

Car tab with tyre sets, car issues, penalties, live timing and brake and tyre temperatures — Car status, including live Sentinel brake and tyre temperatures.

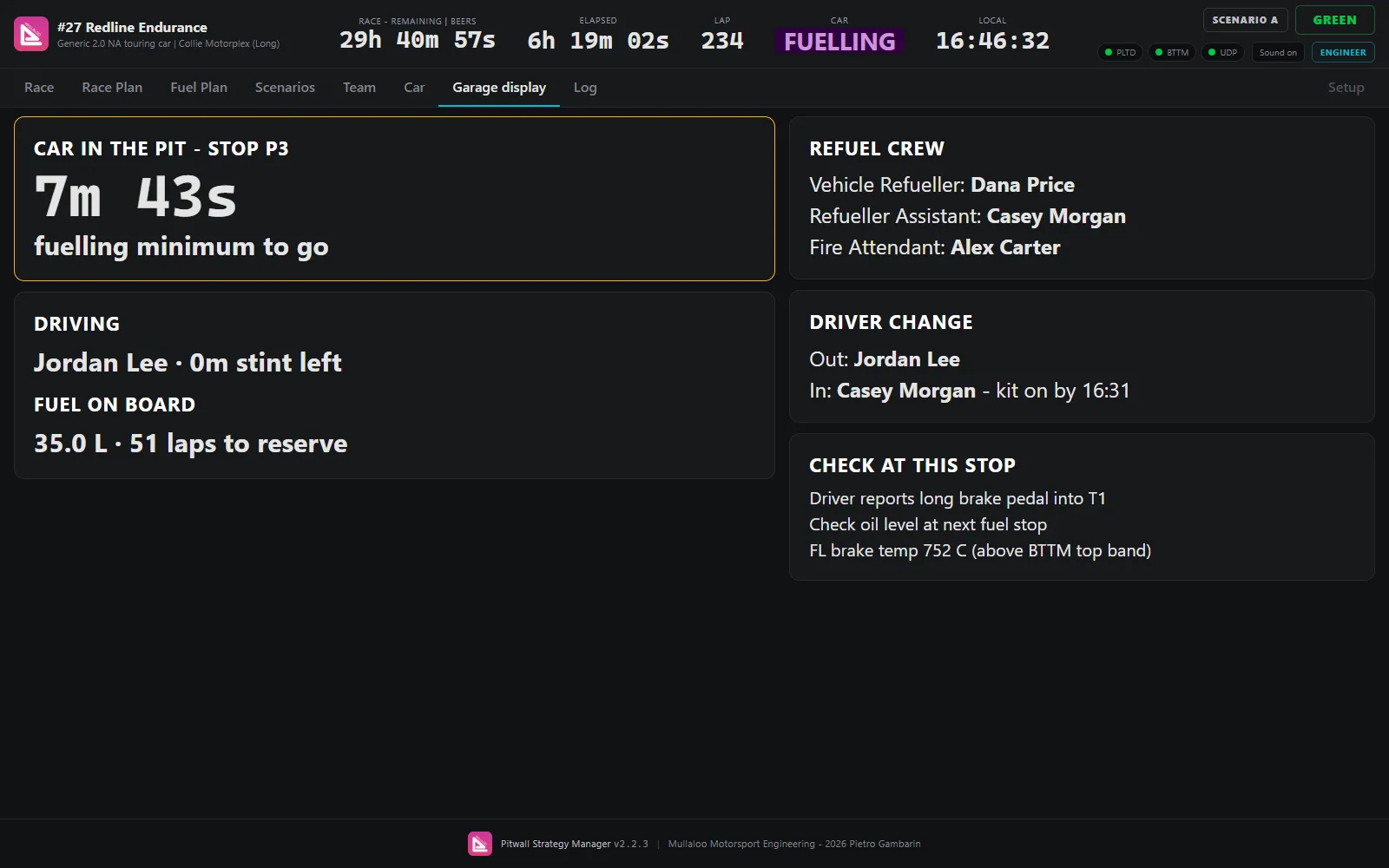

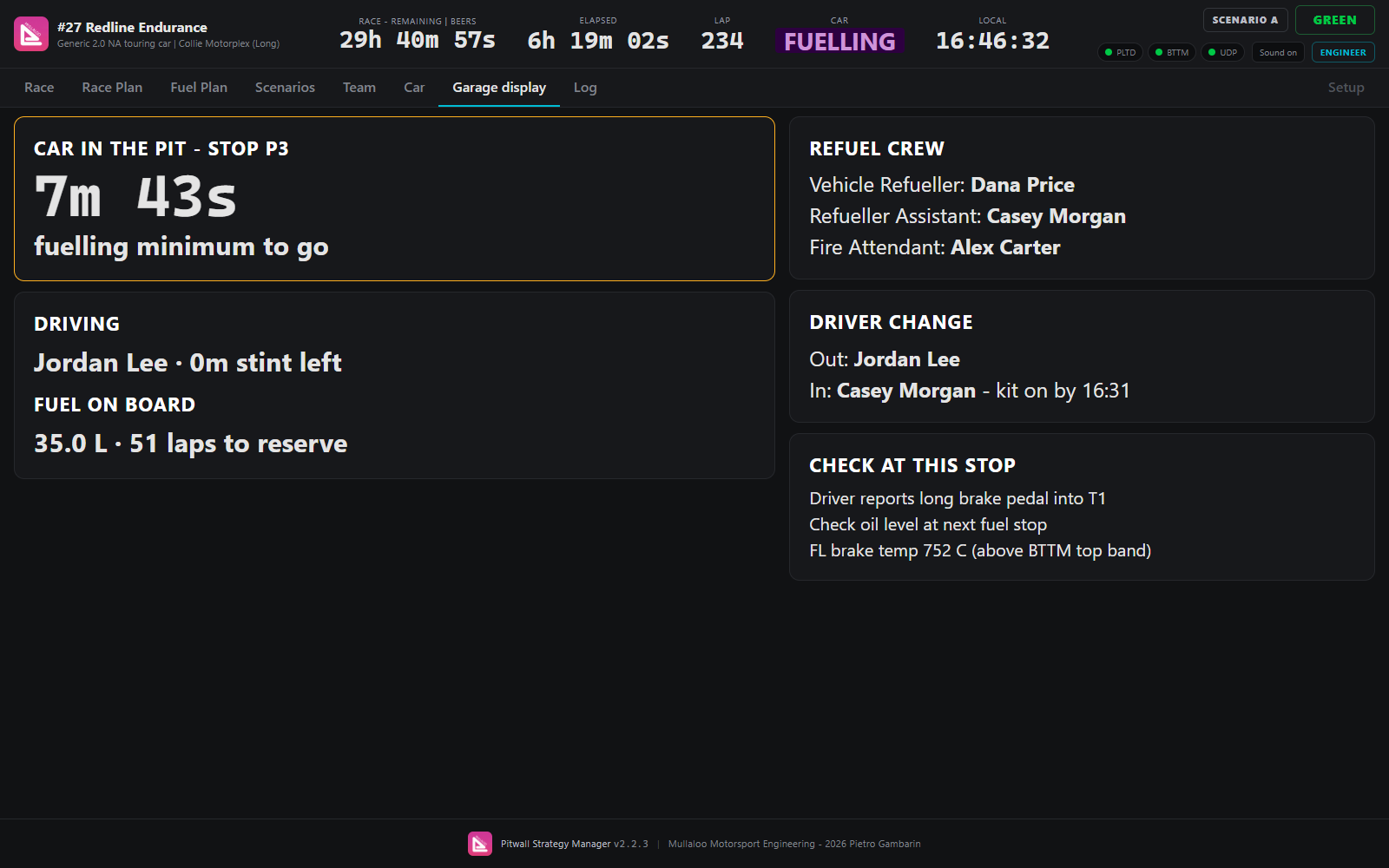

Garage display during a stop, with the fuelling countdown, refuel crew, driver change and jobs in large type — Garage display for a tablet or TV.
