GPS lap timer and driver display for circuit racing

Agile times laps and micro-sectors from dual-band GNSS, with a live delta against the best clean lap on the driver's display. It records the track outline and the pit lane, fuel bay and pit exit zones, so pitted laps never become the reference. Pit board messages and race-control flags sent from the pit wall appear on the dash. The v1.0 prototype is housed in a 3D-printed development enclosure.

Prototype pre-release for track tests.

Type: Hardware
Status: Prototype
Compliance: Not certified
Repository licence: CERN-OHL-S-2.0 (hardware), CC BY 4.0 (documentation), firmware proprietary
Updated: 16 October 2026

Specifications

Agile specifications
MCU	ESP32-S3, 16 MB flash, 8 MB PSRAM
GNSS	u-blox MAX-F10S dual-band, 10 Hz
IMU	LSM6DSV16X 6-axis, 240 Hz
Display	284 x 76 px TFT
Micro-sectors	Up to 32, built automatically on a recon lap
Log storage	512 MB NAND, export over Wi-Fi or USB
Connectivity	Wi-Fi (HTTP and WebSocket), USB-C
Board	90 x 30 mm, PCB v1.1

Gallery

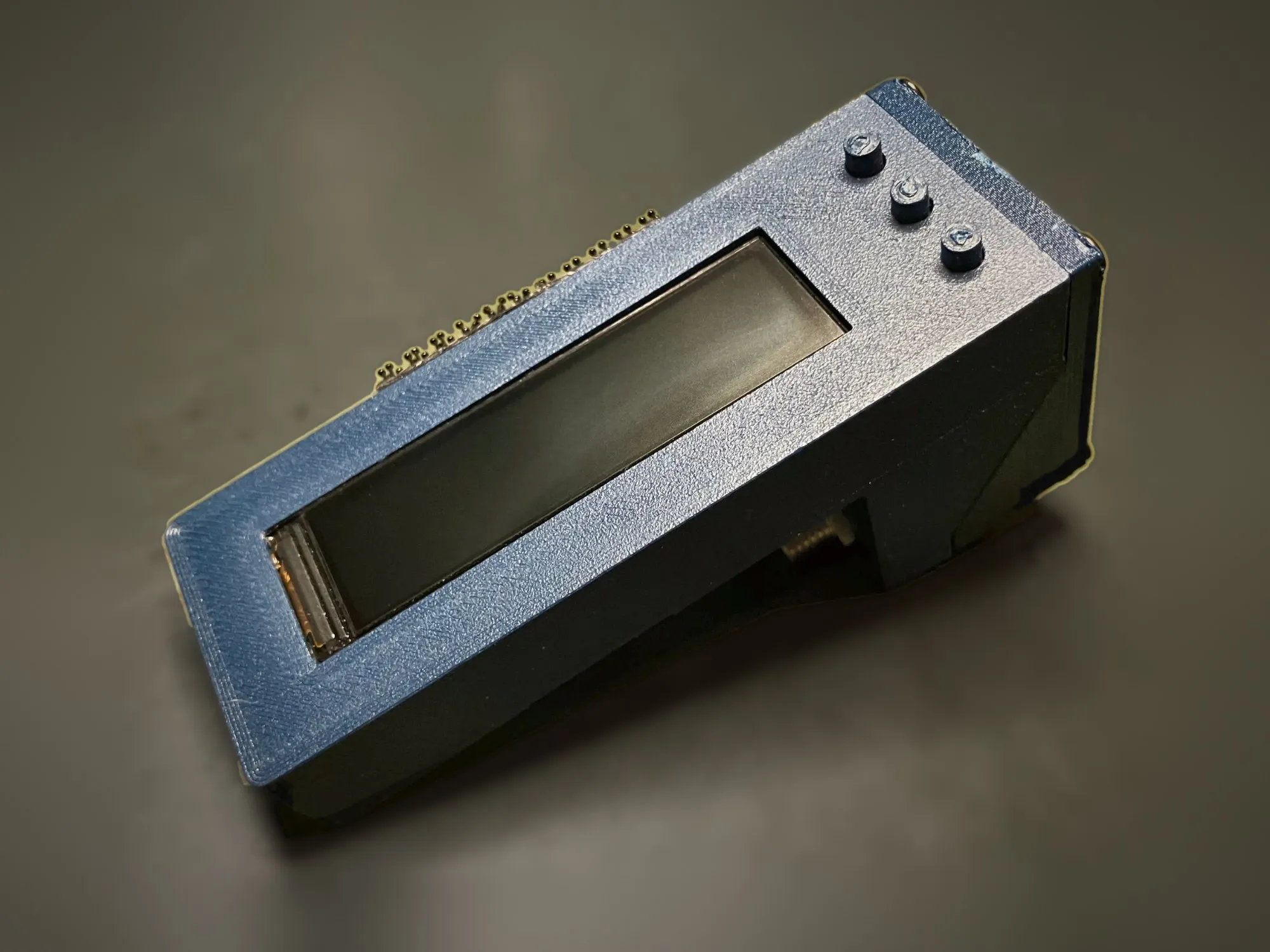

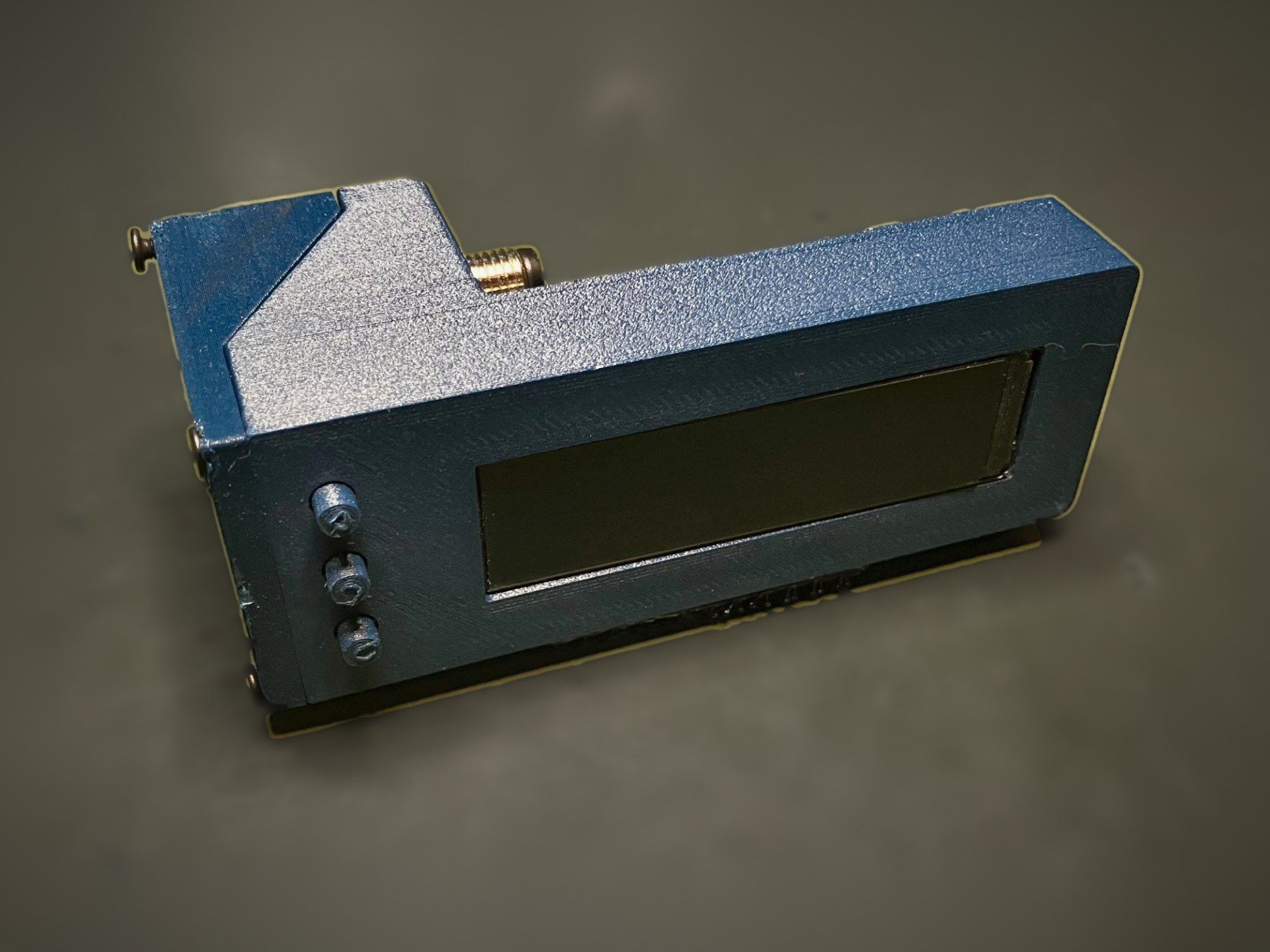

Front of the Agile v1.0 prototype, showing the wide display window and three buttons beside it — Agile v1.0, a prototype in a 3D-printed development enclosure.

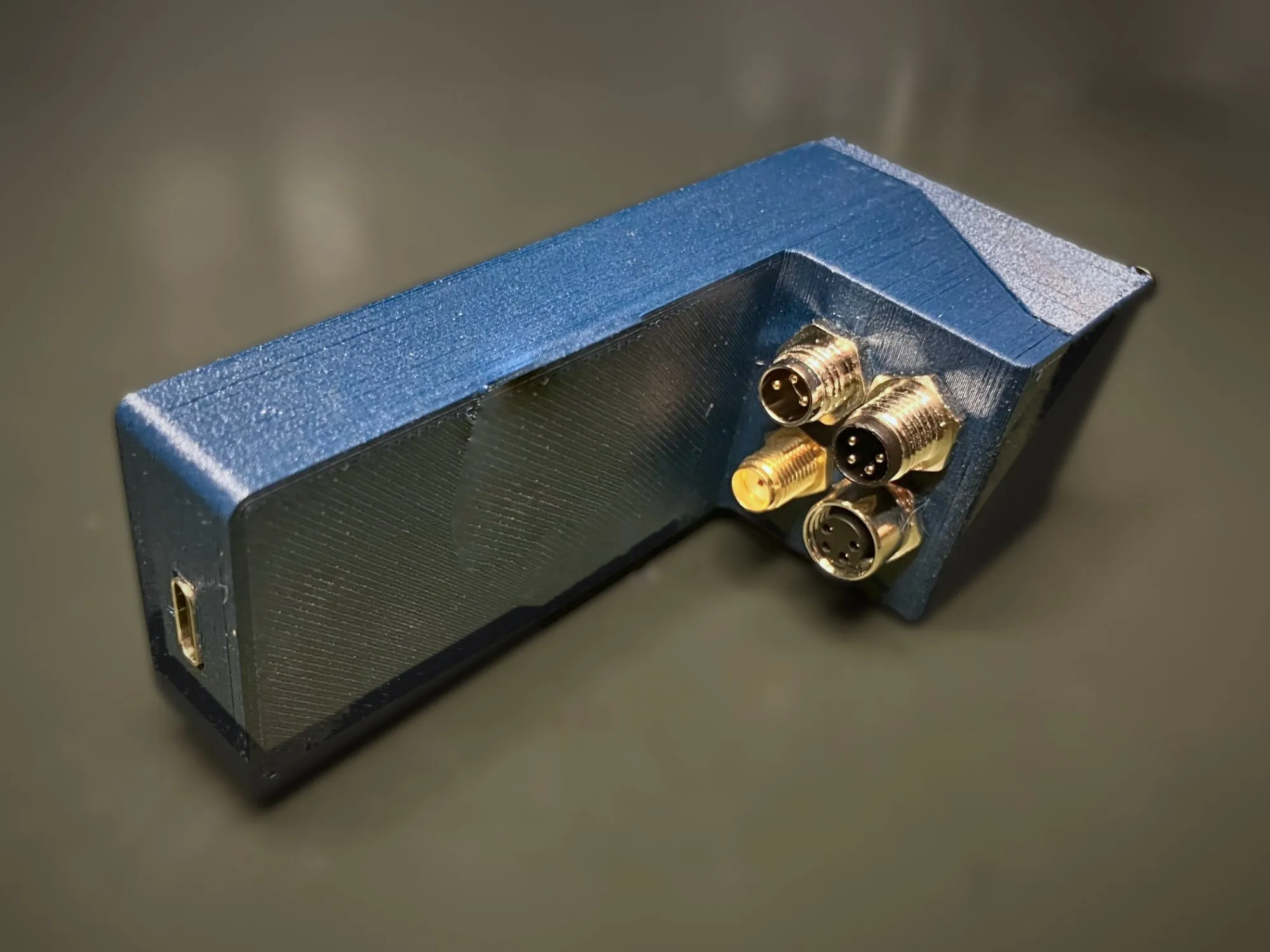

Rear of the Agile v1.0 enclosure with three circular connectors, an SMA antenna connector and a USB-C port at the end — Connectors on the rear of the v1.0 enclosure, with USB-C at the end.

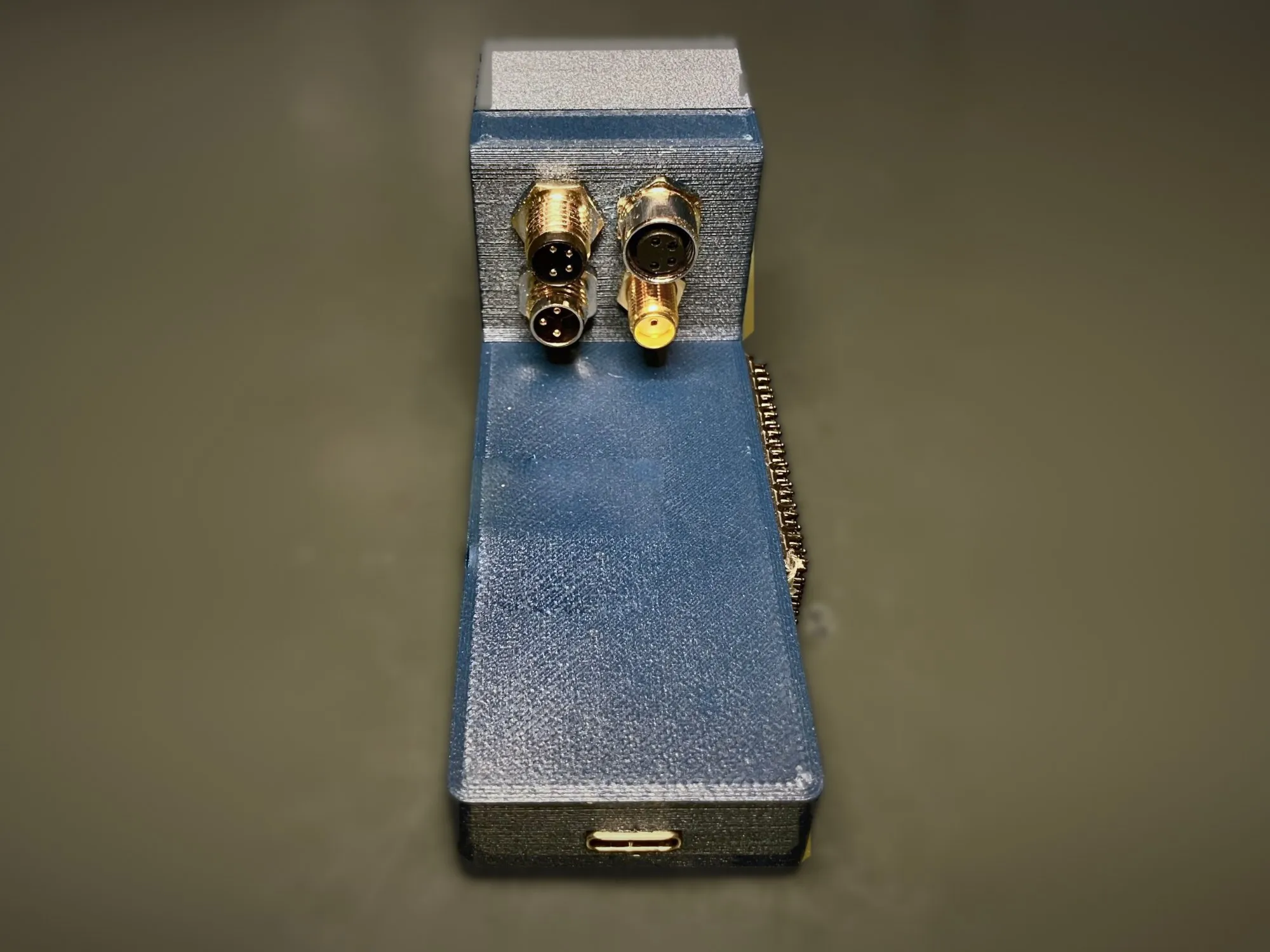

Agile v1.0 seen from behind, with the connector panel at the top and the USB-C port at the bottom — The v1.0 enclosure from behind.

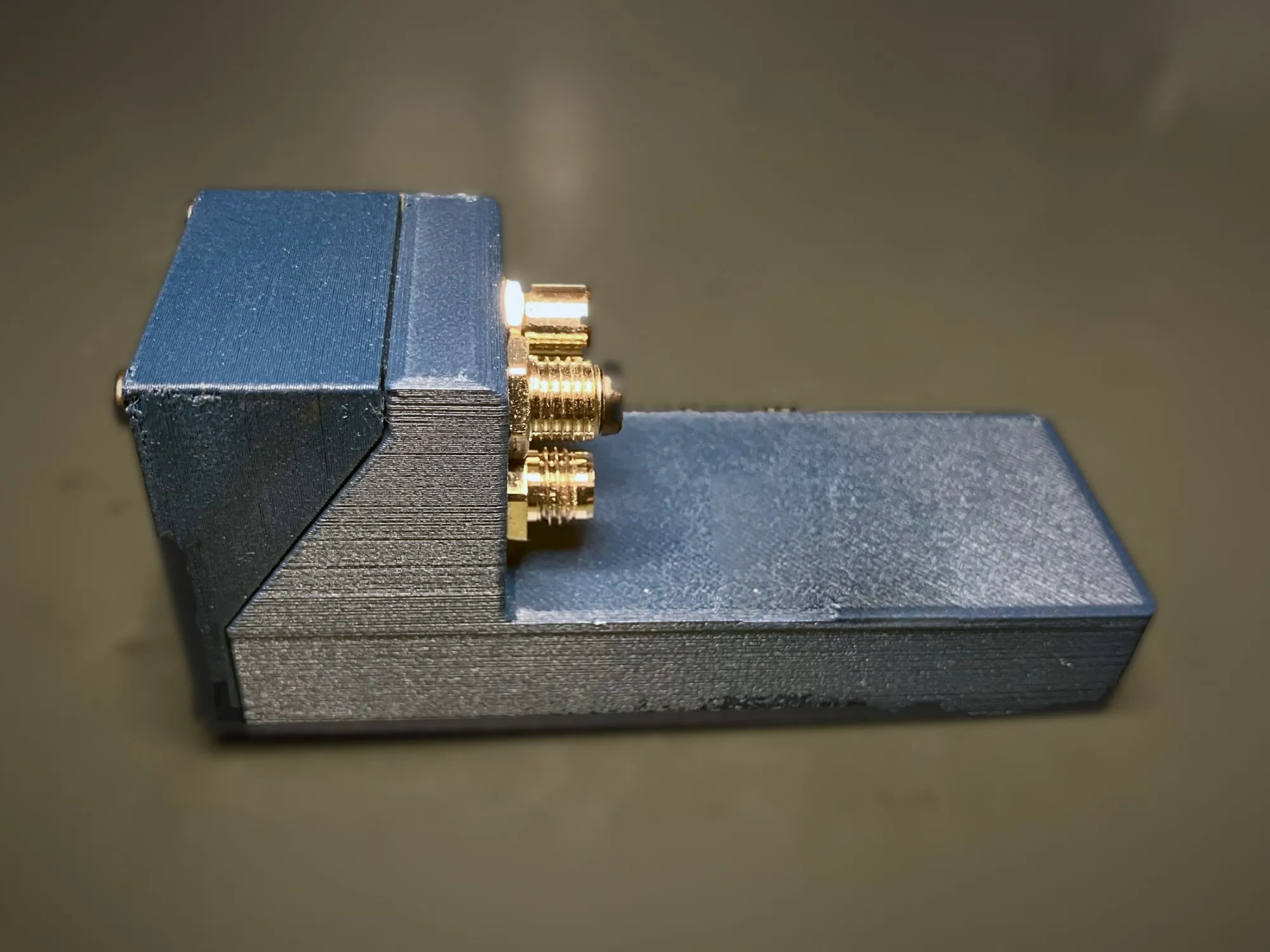

Side view of the Agile v1.0 enclosure with the connectors protruding from the rear panel — Side view of the v1.0 enclosure.

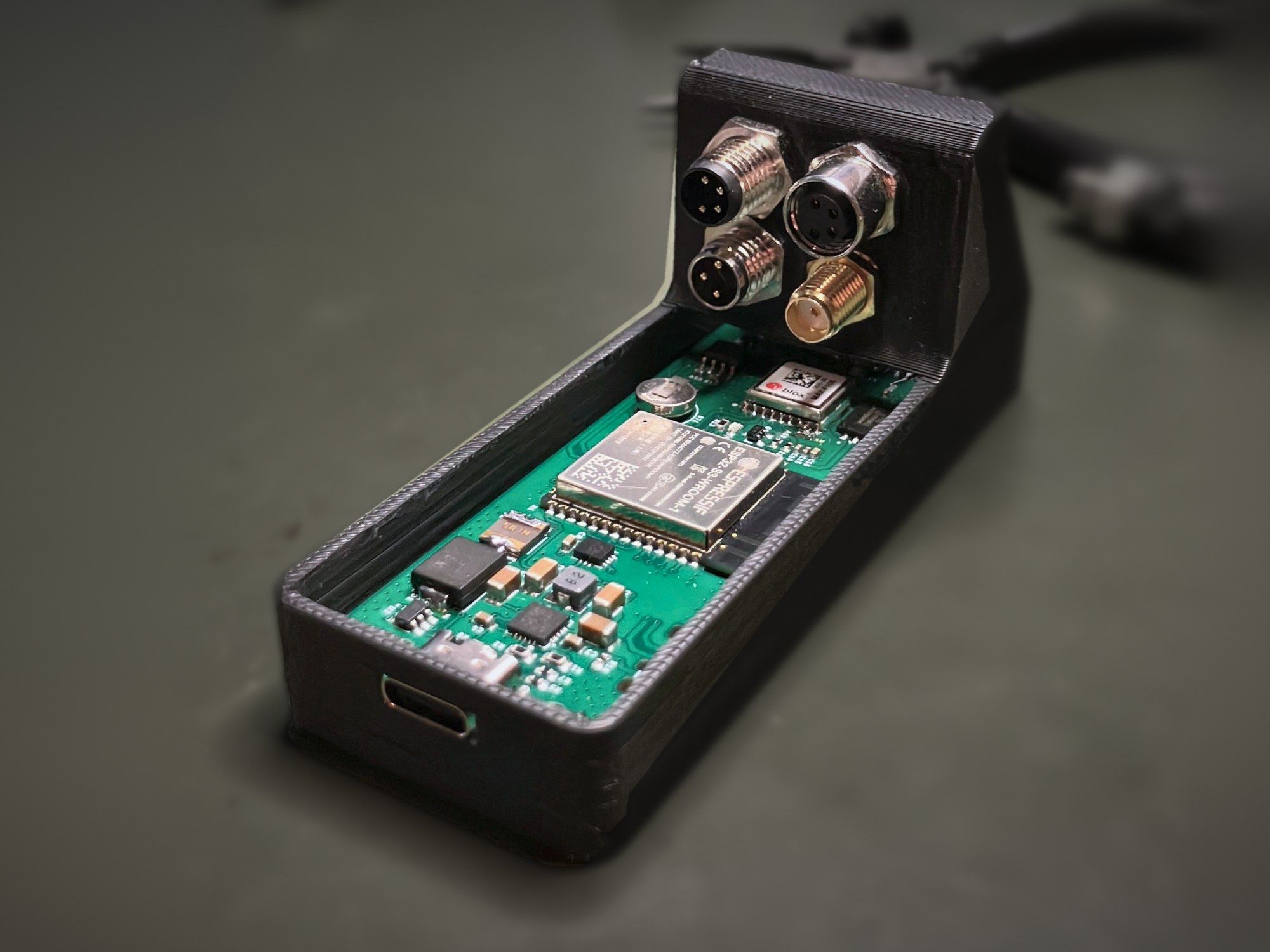

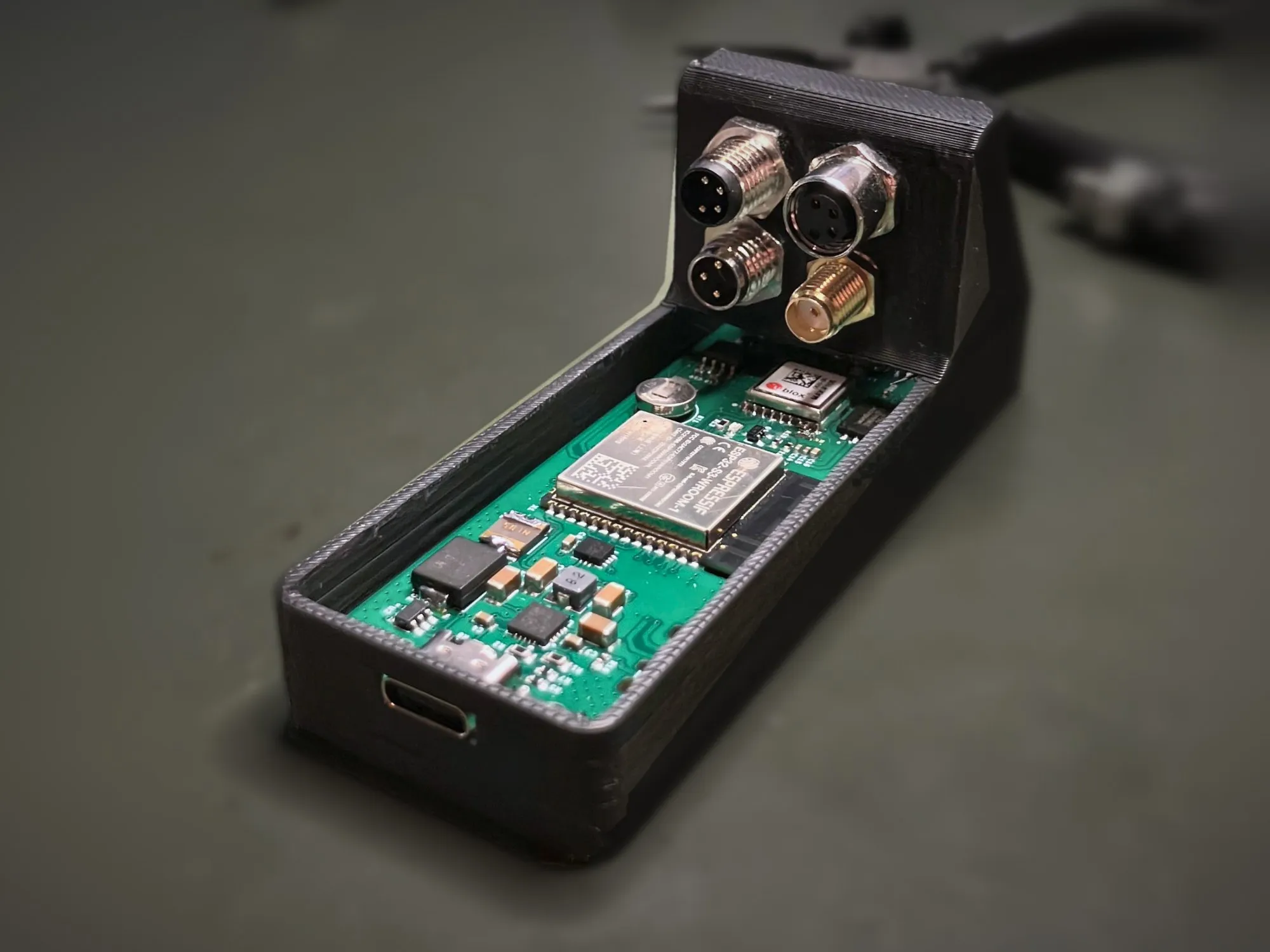

Open Agile v1.0 enclosure showing the circuit board with an ESP32-S3 module, a u-blox GNSS module and the connector panel — Inside v1.0, the main board with the ESP32-S3 and u-blox GNSS modules behind the connector panel.

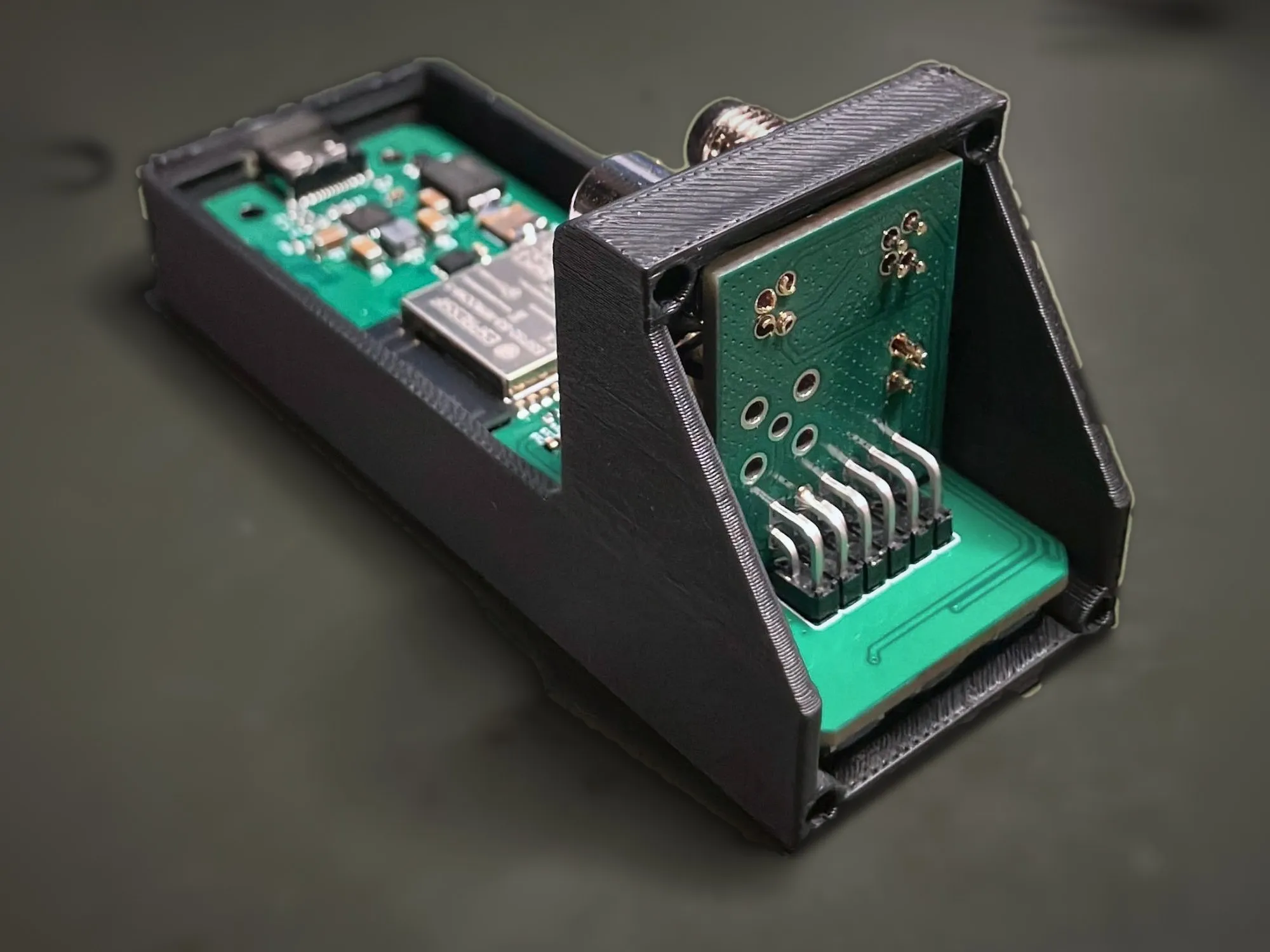

Open Agile v1.0 enclosure with the display board standing in its angled mount above the main board — The display board in its angled mount, from inside the open v1.0 enclosure.
